1KVA 2KVA 3KVA 4KVA 5KVA PWM Hybrid Solar Inverter Off Grid for photovoltaic

Brand Name : ZGD

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1 sets

Price : $340~390.00/Sets

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Set/Sets per Month

Delivery Time : 7~15 working days

Packaging Details : Carton packaging

Output Voltage : 230VAC ± 5%

Output Frequency : 50/60Hz

Inverter Efficiency : 98%

Product name : Off-grid Hybrid Inverter

Rated power : 3.2kw

Transfer Time : 10ms (For Personal Computers) 20ms (For Home Appliance)

Contact Now

Product Paramenters
Model
3200-24
RATED POWER
3200VA/3200W
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation(Batt. Mode)
230 VAC ± 5%
Surge Power
6400 VA
Efficiency(Peak) PV to INV.
97%
Efficiency(Peak) Battery to INV.
94%
Transfer Time
10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform
Pure sine wave
BATTERY & AC CHARGER
Battery Voltage
24 VDC
Floating Charge Voltage
27 VDC
Overcharge Protection
33 VDC
Maximum Charge Current
80 A
SOLAR CHARGER
Maximum PV Array Power
4000W
MPPT Range@Operating Voltage
120 - 450 VDC
Maximum PV Array Open Circuit Voltage
500 VDC
Maximum Charging Current
80A
Maximum Efficiency
98%
PHYSICAL
Dimension, D*W*H (mm)
100 * 300 * 440
Net Weight(kgs)
9
Communication interface
USB/RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity ( Non-condensing)
Operating Temperature
0°C - 55°C
Storage Temperature
-15°C - 60°C
What is Solar Inverter?

Solar inverters are used in photovoltaic (PV) systems to convert the DC voltage supplied by the solar cells into AC voltage, to adapt it to the voltage level of the power grid and feed it to the grid.

A solar inverter primarily plays the following roles in a solar power system:

* Conversion of DC to AC power.
* Maximization of energy production.
* Ensuring safe system operations.
* Improved grid assistance capabilities.
* Efficient tracking of power output.
Features
* Pure Sine wave inverter

* Configurable input voltage range for home appliances and personal computer via LCD setting

* Configurable battery charging current based on applications via LCD setting

* Configurable AC/Solar Charger/Controller priority via LCD setting

* Compatible to mains voltage or generator power

* Auto restart while AC is recovering

* Overload/Over temperature/ Short circuit protection

* MPPT Smart battery charger controller design for optimized battery performance

* Cold start function
Products Description

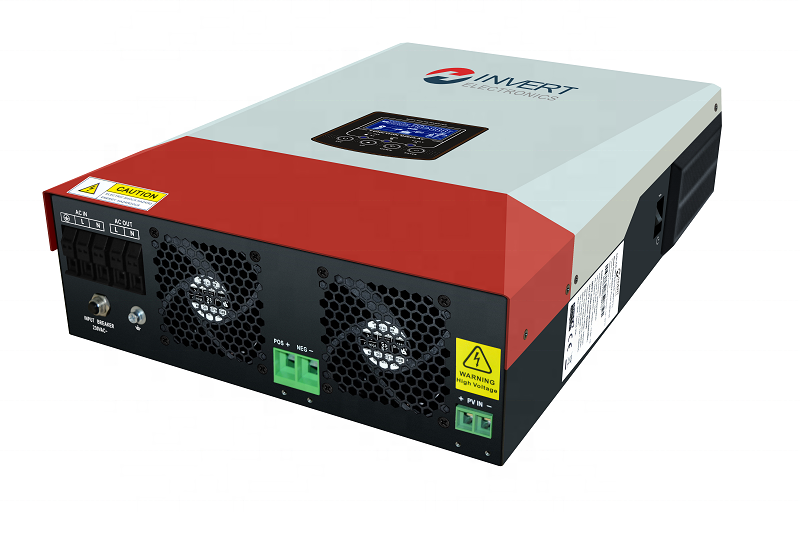

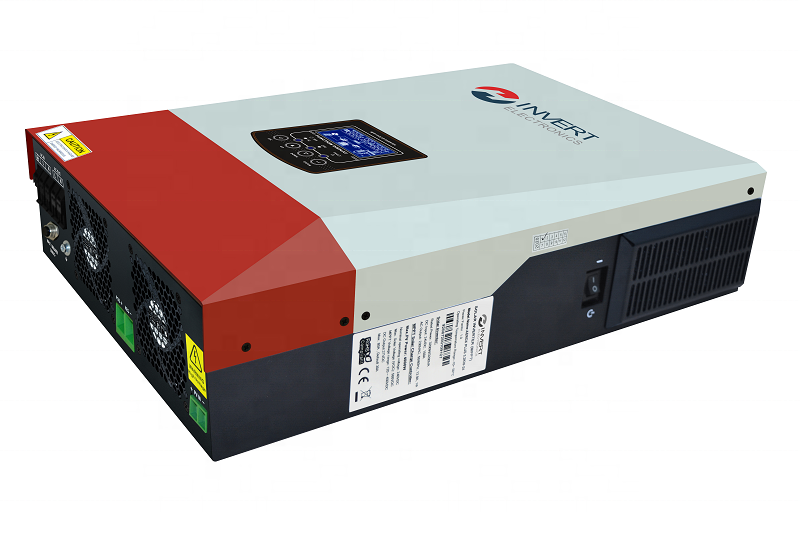

1KVA 2KVA 3KVA 4KVA 5KVA PWM Hybrid Solar Inverter Off Grid for photovoltaic
1KVA 2KVA 3KVA 4KVA 5KVA PWM Hybrid Solar Inverter Off Grid for photovoltaic
1KVA 2KVA 3KVA 4KVA 5KVA PWM Hybrid Solar Inverter Off Grid for photovoltaic
1KVA 2KVA 3KVA 4KVA 5KVA PWM Hybrid Solar Inverter Off Grid for photovoltaic
1KVA 2KVA 3KVA 4KVA 5KVA PWM Hybrid Solar Inverter Off Grid for photovoltaic
1KVA 2KVA 3KVA 4KVA 5KVA PWM Hybrid Solar Inverter Off Grid for photovoltaic
