LCD Display Off Grid Solar Inverter , 230VAC Hybrid Solar Inverter 5kw

Brand Name : ZGD

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1 sets

Price : $380.00/Sets

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Set/Sets per Month

Delivery Time : 7~15 working days

Packaging Details : Carton packaging

Voltage : 230VAC ± 5%

Product name : Solar inverter

Display : LCD Display

Output Current : 80A

Type : DC/AC Inverters

Application : Home Solar Power System

Contact Now

Product Paramenters

MODEL NAME	HMK PLUS (WITHOU BATTERY) CHEAPER
RATED POWER	5500W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers)
Selectable Voltage Range	90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	11000VA
Efficiency (Peak) PV to INV.	97%
Efficiency (Peak) Battery to INV.	94%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Output Port	Dual output
Waveform	Pure sine wave
BATTERY & AC CHARGER
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	61 VDC
Maximum Charge Current	80 A(From grid)
SOC display	Shows battery State of charge in percentage and in voltage as well
Sleeping Mode	YES
Battery voltage low cut off selectable	42V-49V
Battery High voltage range selectable	50-60V
Works without Battery	YES
SOLAR CHARGER
Maximum PV Array Power	6000W
MPPT Range @ Operating Voltage	100 ~ 430 VDC
Maximum PV Array Open Circuit Voltage	450 VDC
Maximum Charging Current	100A
Maximum Efficiency	98%
PHYSICAL
Dimension, D x W x H (mm)	100 x 310 x 380
Net Weight (kgs)	10.6
Communication interface	RS485/ Wifi option(BMS Compatible with lithium battery using RS-485)
LCD display	General small LCD
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C - 55°C
Storage Temperature	–15°C - 60°C

Features

LCD Display Off Grid Solar Inverter , 230VAC Hybrid Solar Inverter 5kw

* Pure Sine wave inverter
 * Configurable input voltage range for home appliances and personal computer via LCD setting

 * Configurable battery charging current based on applications via LCD setting

 * Configurable AC/Solar Charger/Controller priority via LCD setting

 * Compatible to mains voltage or generator power

 * Auto restart while AC is recovering

 * Overload/Over temperature/ Short circuit protection

 * MPPT Smart battery charger controller design for optimized battery performance

 * Cold start function

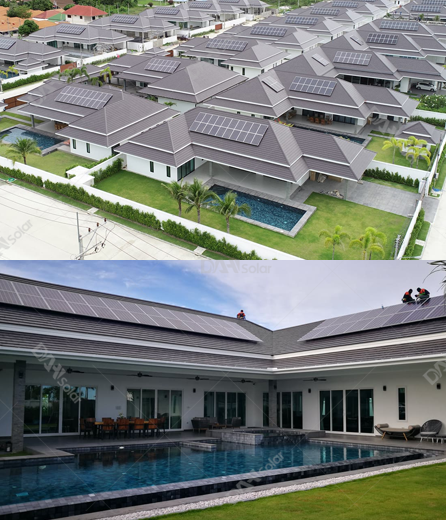

Application
